DEMOELE Hot sale China manufactory application IP68 waterproof nylon NPT PG Metric G thread cable glands size

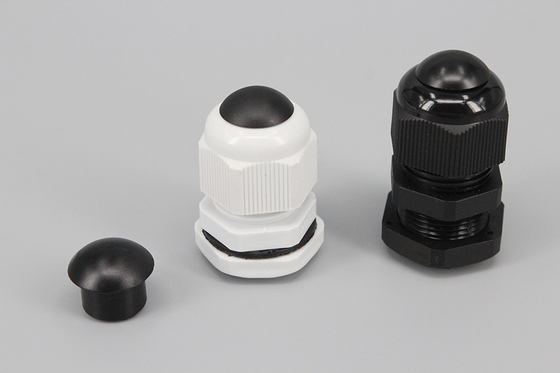

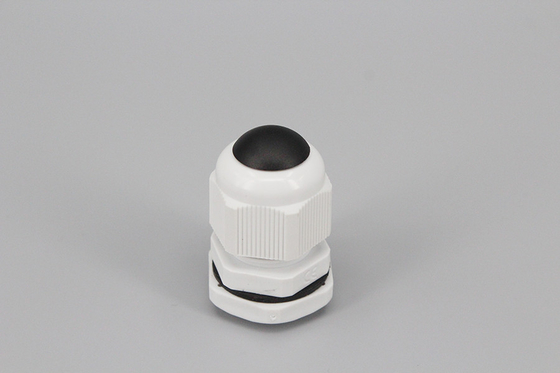

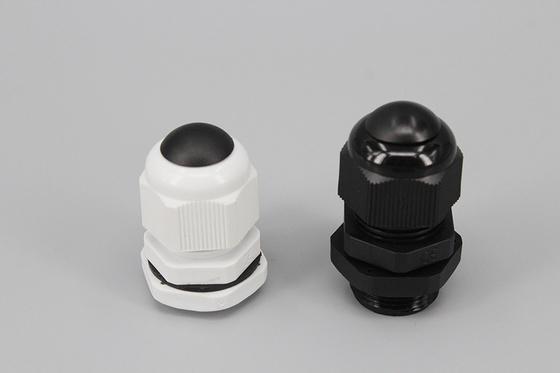

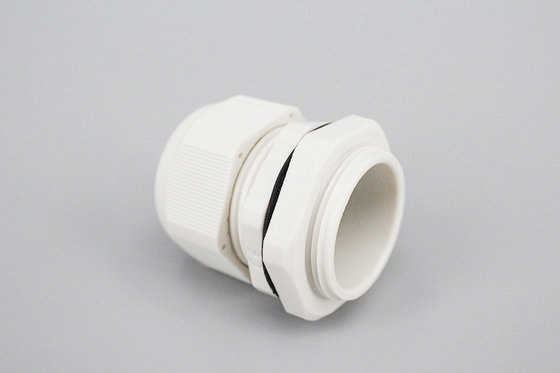

Large Image : DEMOELE Hot sale China manufactory application IP68 waterproof nylon NPT PG Metric G thread cable glands size

Product Details:

Place of Origin:	China
Brand Name:	ODM,OEM
Certification:	CE
Model Number:	PG7,PG9,PG11,PG13.5,PG16,PG19,PG21,PG25,PG29,PG36,PG42,PG48,PG63

Payment & Shipping Terms:

Minimum Order Quantity:	10000
Price:	USD 0.01-0.1 PCS
Packaging Details:	100-1000pcs/bag,or according to your requires.
Delivery Time:	5-10 work days,according to your order quantity
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	10000000 PCS per day

Contact Now

Detailed Product Description

Type:	PG7,PG9,PG11,PG13.5,PG16,PG19,PG21,PG25,PG29,PG36,PG42,PG48,PG63	Color:	Black,Grey,or As Your Requires
Material:	Nylon,94V-2 Or PP	IP Degree:	IP68

Material:Nylon PA66(Flammability UL94V-2)for A,C,E parts(accept to customize flammability UL 94V-0 ).EPDM rubber for B,D parts(accept to customize resist high temperature rubber,resist strong acid/alkali,etc)

IP degree:IP68

Working temperature:-40℃ to 100℃

Feature:The special design for claw and seal nut can hold cable steady,the usage range of cable diameter wider,it’s harder to pull cable out.Resistant to salt water,weak acid,alcohol,oil,grease,etc.

Colours:Black,Grey,other color available upon request.

Specification

Remark:Special specification can be customized.

Type	Cable diameter (mm)	Thread diameter C1(mm)	Thread length C2 (mm)	Wrench diameter(mm)
PG7	3-6.5	12.5	8	16	Standard type
PG9	4-8	15.2	8	19
PG11	5-10	18.6	8	22
PG13.5	6-11	20.4	10	24
PG16	10-13	22.5	10	27
PG19	12-15	24	10	27
PG21	13-18	28.3	10	33
PG25	16-21	30	11	35
PG29	18-25	37	12	42
PG36	22-32	47	14	52
PG42	32-38	54	14	60
PG48	37-44	59.3	15	64
PG63	42-50	71	28	77
PG7	2-5	12.5	8	16	Rubber ring thicken type
PG9	2-6	15.2	8	19
PG11	3-7	18.6	8	22
PG13.5	5-9	20.4	10	24
PG16	7-12	22.5	10	27
PG19	10-13	24	10	27
PG21	9-16	28.3	10	33
PG25	13-18	30	11	35
PG29	13-20	37	12	42
PG36	20-26	47	14	52
PG42	25-31	54	14	60
PG48	29-35	59.3	15	64
PG63	32-40	71	28	77

Details of product

DEMOELE Hot sale China manufactory application IP68 waterproof nylon NPT PG Metric G thread cable glands size
