DEMOELE New Material black and grey white IP68 waterproof Nylon Right Angle Cable Glands with CE certificate

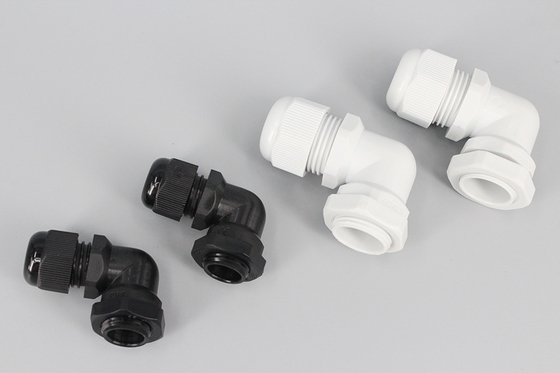

Large Image : DEMOELE New Material black and grey white IP68 waterproof Nylon Right Angle Cable Glands with CE certificate

Product Details:

Place of Origin:	China
Brand Name:	DEMOELE,ODM,OEM
Certification:	CE
Model Number:	PG7,PG9,PG11,PG13.5,PG16,PG19,PG21,PG25,PG29,PG36,PG42,PG48,PG63

Payment & Shipping Terms:

Minimum Order Quantity:	10000
Price:	USD 0.01-0.1 PCS
Packaging Details:	100-1000pcs/bag,or according to your requires.
Delivery Time:	5-10 work days,according to your order quantity
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	10000000 PCS per day

Contact Now

Detailed Product Description

Color:	Black,Grey,or As Your Requires	Material:	Nylon Or PP
IP Degree:	IP68

90° Elbow nylon cable gland
Material:Nylon 66+ NBR
IP degree:IP68
Working temperature:-40℃ to 100℃
Feature:The special design for claw and seal nut can hold cable steady,the usage range of cable diameter wider,it’s harder to pull cable out.Resistant to salt water,weak acid,alcohol,oil,grease,etc.
Colours:Black,Grey,other color available upon request.

Specification

Remark:Special specification can be customized.

Type	Cable diameter (mm)	Thread diameter C1(mm)	Thread length C2 (mm)	Height H(mm)	Wrench diameter(mm)
PG9	4-8	15.2	8	37	19	Standard type
PG11	5-10	18.6	8	39	22
PG13.5	6-11	20.4	10	43	24
PG16	10-13	22.5	10	48	27
PG21	13-18	28.3	10	56	33
PG29	18-25	37	12	68	42
PG9	2-6	15.2	8	37	19	Rubber ring thicken type
PG11	3-7	18.6	8	39	22
PG13.5	5-9	20.4	10	43	24
PG16	7-12	22.5	10	48	27
PG21	9-16	28.3	10	56	33
PG29	13-20	37	12	68	42

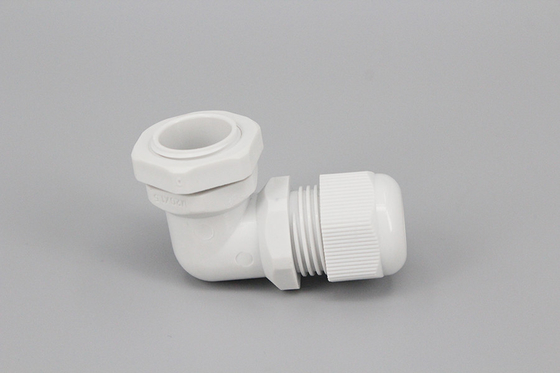

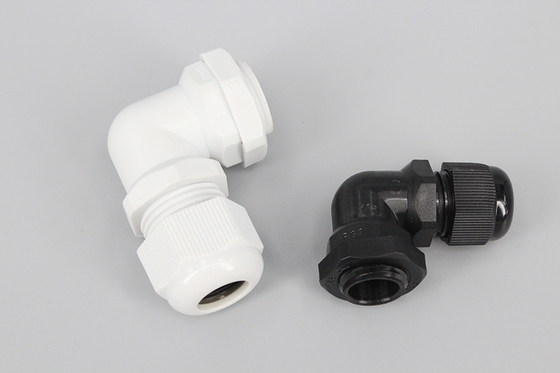

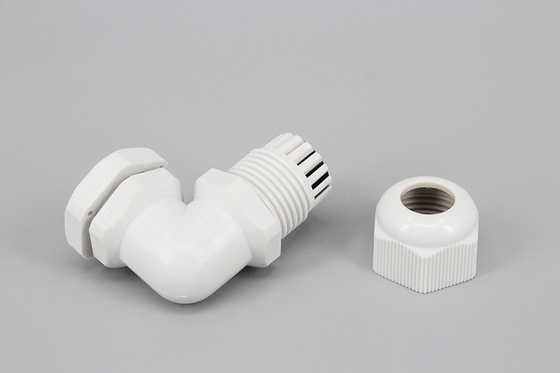

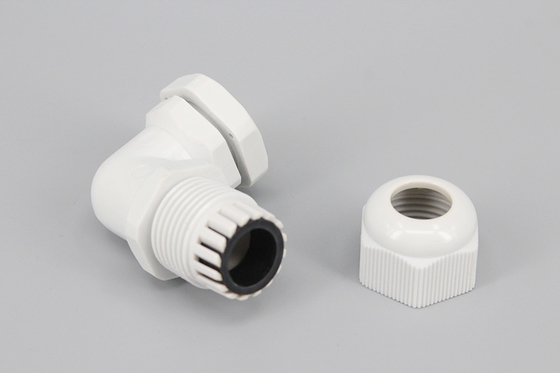

Details of product
xinguang xingo right angle cable gland
