DEMOELE CE Approved nylon PA material black and grey color IP68 spiral Waterproof PG Cable Glands With Strain Relief

I'm Online Chat Now

DEMOELE CE Approved nylon PA material black and grey color IP68 spiral Waterproof PG Cable Glands With Strain Relief

China DEMOELE CE Approved nylon PA material black and grey color IP68 spiral Waterproof PG Cable Glands With Strain Relief supplier
DEMOELE CE Approved nylon PA material black and grey color IP68 spiral Waterproof PG Cable Glands With Strain Relief supplier DEMOELE CE Approved nylon PA material black and grey color IP68 spiral Waterproof PG Cable Glands With Strain Relief supplier DEMOELE CE Approved nylon PA material black and grey color IP68 spiral Waterproof PG Cable Glands With Strain Relief supplier DEMOELE CE Approved nylon PA material black and grey color IP68 spiral Waterproof PG Cable Glands With Strain Relief supplier DEMOELE CE Approved nylon PA material black and grey color IP68 spiral Waterproof PG Cable Glands With Strain Relief supplier

Large Image :  DEMOELE CE Approved nylon PA material black and grey color IP68 spiral Waterproof PG Cable Glands With Strain Relief

Product Details:

Place of Origin: China
Brand Name: DEMOELE,ODM,OEM
Certification: CE
Model Number: PG7-21,M12-27

Payment & Shipping Terms:

Minimum Order Quantity: 10000
Price: USD 0.01-0.1 PCS
Packaging Details: 100-1000pcs/bag,or according to your requires.
Delivery Time: 5-10 work days,according to your order quantity
Payment Terms: Western Union, T/T, L/C
Supply Ability: 10000000 PCS per day
Detailed Product Description
Type: PG7-21,M12-27 Color: Black,Grey,or As Your Requires
Material: Nylon Or PP IP Degree: IP68

Material:Nylon PA66(Flammability UL94V-2)for A,C,E parts(accept to customize flammability UL 94V-0 ).EPDM rubber for B,D parts(accept to customize resist high temperature rubber,resist strong acid/alkali,etc)

IP degree:IP68

Working temperature:-40℃ to 100℃

Feature:The special design for claw and seal nut can hold cable steady,the usage range of cable diameter wider,its harder to pull cable out.                                                                     Resistant to salt water,weak acid,alcohol,oil,grease,etc.

Colours:Black,Grey,other color available upon request.



DEMOELE CE Approved nylon PA material black and grey color IP68 spiral Waterproof PG Cable Glands With Strain Relief




Specification

Remark:Special specification can be customized.

Type Cable diameter (mm) Thread diameter C1(mm) Thread length C2 (mm) Wrench diameter (mm) Remark
PG7 3-6.5 12.5 8 16 Standard type
PG9 4-8 15.2 8 19
PG11 5-10 18.6 8 22
PG13.5 6-11 20.4 10 24
PG16 10-13 22.5 10 27
PG21 13-18 28.3 10 33
PG7 2-5 12.5 8 16 Rubber ring thicken type
PG9 2-6 15.2 8 19
PG11 3-7 18.6 8 22
PG13.5 5-9 20.4 10 24
PG16 7-12 22.5 10 27
PG21 9-16 28.3 10 33
M12x1.5 3-6.5 12 8 16 Standard type
M16x1.5 4-8 16 8 19
M18x1.5 5-10 18 8 22
M20x1.5 6-11 20 10 24
M22x1.5 10-13 22 10 27
M25x1.5 13-18 25 10 33
M27x1.5 13-18 27 10 33
M12x1.5 2-5 12 8 16 Rubber ring thicken type
M16x1.5 2-6 16 8 19
M18x1.5 3-7 18 8 22
M20x1.5 5-9 20 10 24
M22x1.5 7-12 22 10 27
M25x1.5 9-16 25 10 33
M27x1.5 9-16 27 10 33



Details of product

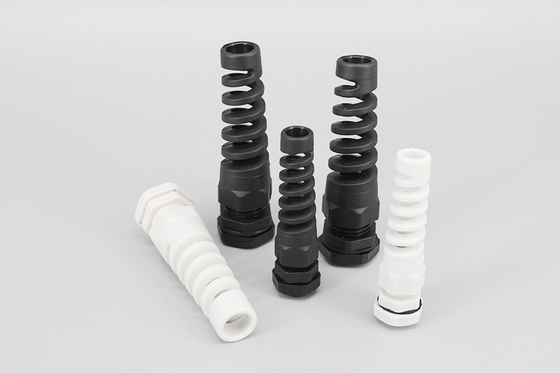

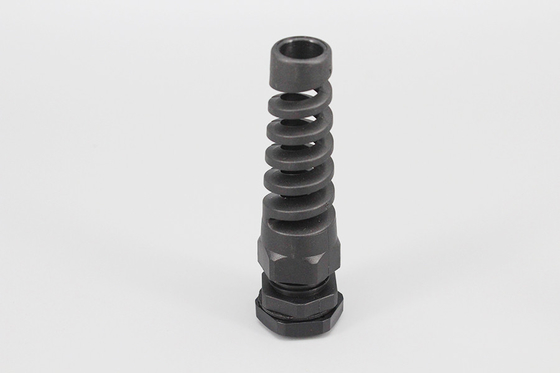

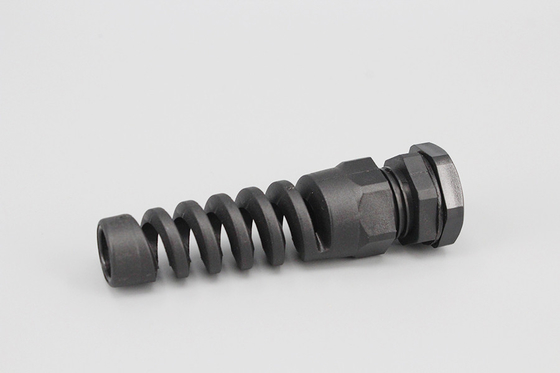

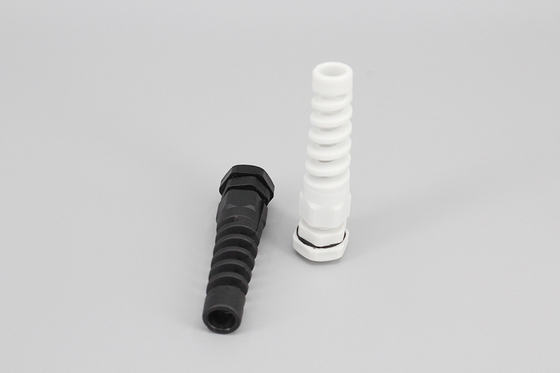

spiral cable glands
